Data Collection Pole 4 to 8 Foot

Brand: Portermax

Product Code:

Availability:In stock

$350.00 345.00

Available Options

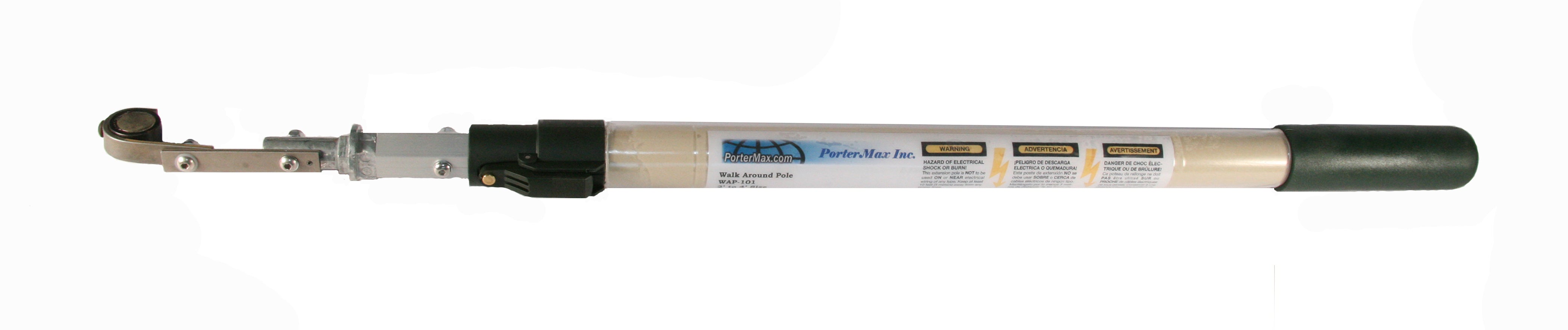

Data Collection Around Extension Pole: 4 Foot 3 Inches retracted to 8 Foot 3 Inches extended (1.5 meters to 2.5 meters). This Pole offers the technician the ability to stay on the ground in a safe position, away from heat sources and working equipment and collect the data required to maintain the reliability of their equipment. It has a Hexagonal inner pole that prevents twisting and a rugged fiberglass outer pole. The smooth Grip Tip holds the Magnet & Accelerometer in place so they cannot loosen: no need to re-tighten. Change the length with no slips as well, just a touch on the lever and the poles lock securely in place. Also included is an Extension Kit: This pole is designed for everyday use and can eliminate the bending and stretching associated with normal accelerometer placement plus provide a safe procedure in dangerous situations. The Extension Kit enables the user to customize the Pole to reach those very difficult and dangerous locations. The head joint is manufactured from stainless steel.

Two Models:

* WAP-105 includes the 50 lb Flat Surface style and a Two Pole 50 lb for round         surfaces. Included with both magnets is a 1/4 - 28 setscrew.

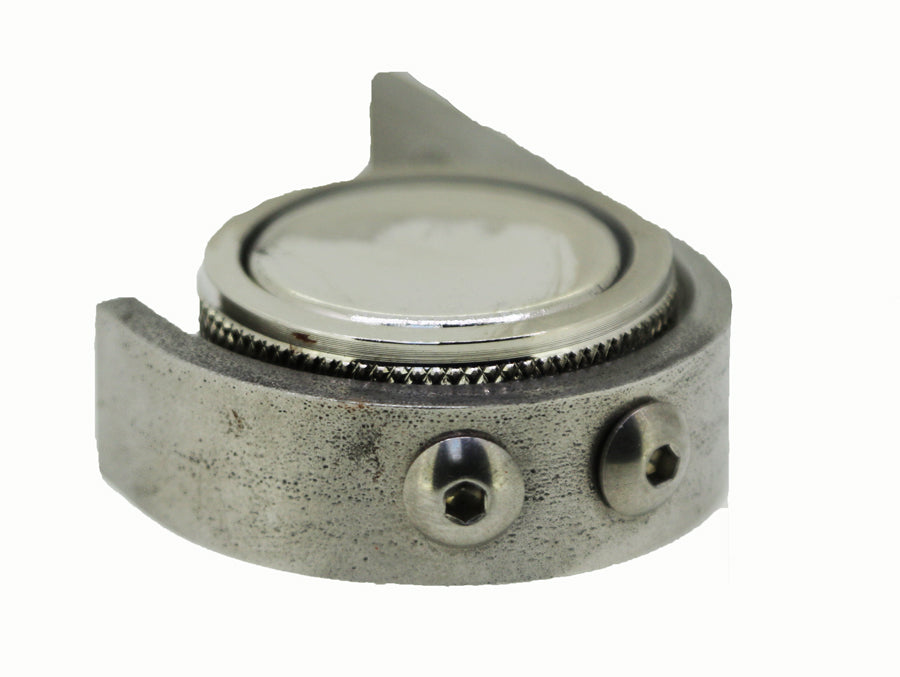

* WAP-105-S includes the REM-110a Flat Mount Magnet 85 Lbs 1 1/4 Inch Diameter w/Arm and a 1/4 - 28 set screw.

Both Data Collection Poles also includes an Extension Kit.

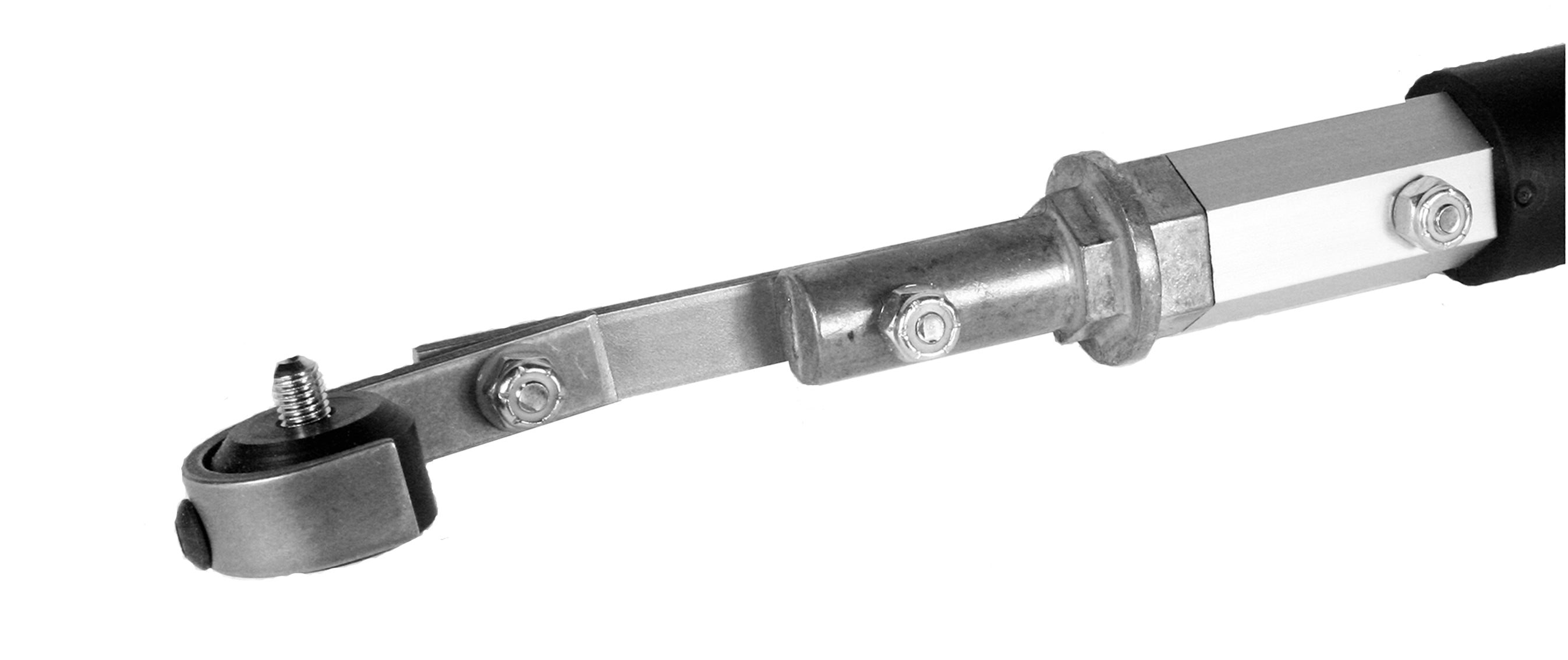

  • This pole is designed for everyday use and can minimize the bending and stretching associated with normal accelerometer placement plus provide a safer procedure in dangerous situations. The Extension Kit enables the user to customize the Pole to reach those very difficult and dangerous locations. The head joint is manufactured from stainless steel.
  • Our Accelerometer/Sensor A-607A11 is best suited for our Data Collection Poles.
