Data Collection Pole

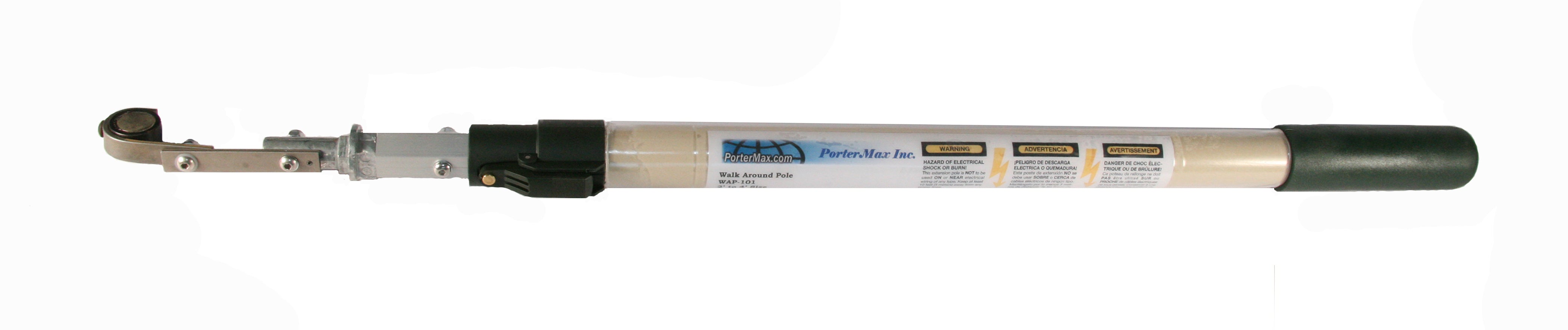

The Data Collection pole and kit give the technician the ability to stay on the ground in a safe position, away from heat sources and working equipment in order to collect the data required to maintain the reliability of their equipment. The smooth grip tip holds the magnet and accelerometer in place to prevent loosening: no need to re-tighten. Non-slip and easy to use, length can be changed using a one touch lever that locks the poles securely in place. The Safety Extension Pole is 6 Foot and 9 Inches retracted and 12 Foot and 3 Inches extended (2.1 Meters to 3.7 Meters). Included are 4 each VELCRO Straps to secure a cable to the pole during testing.

* WAP-102 includes REM-104a Flat Mount 50 lbs. Magnet, 1 inch Diameter w/Amr, for flat surfaces and a Two Pole 50 lbs. Magnet, 1 inch Diameter w/Amr for round surfaces. Included with both magnets is a 1/4 - 28 setscrew.

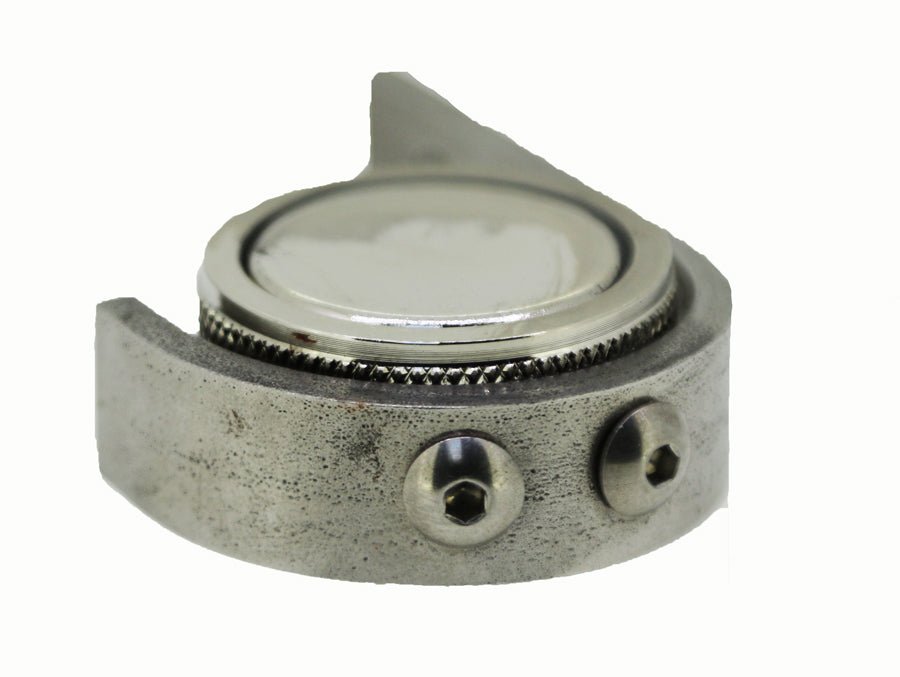

* WAP-102-S includes the REM-110a Flat Mount Magnet, 85 Lbs., 1 1/4 Inch Diameter w/Arm: refer picture No. 3.

Both Data Collection Poles included an Extension Kit.

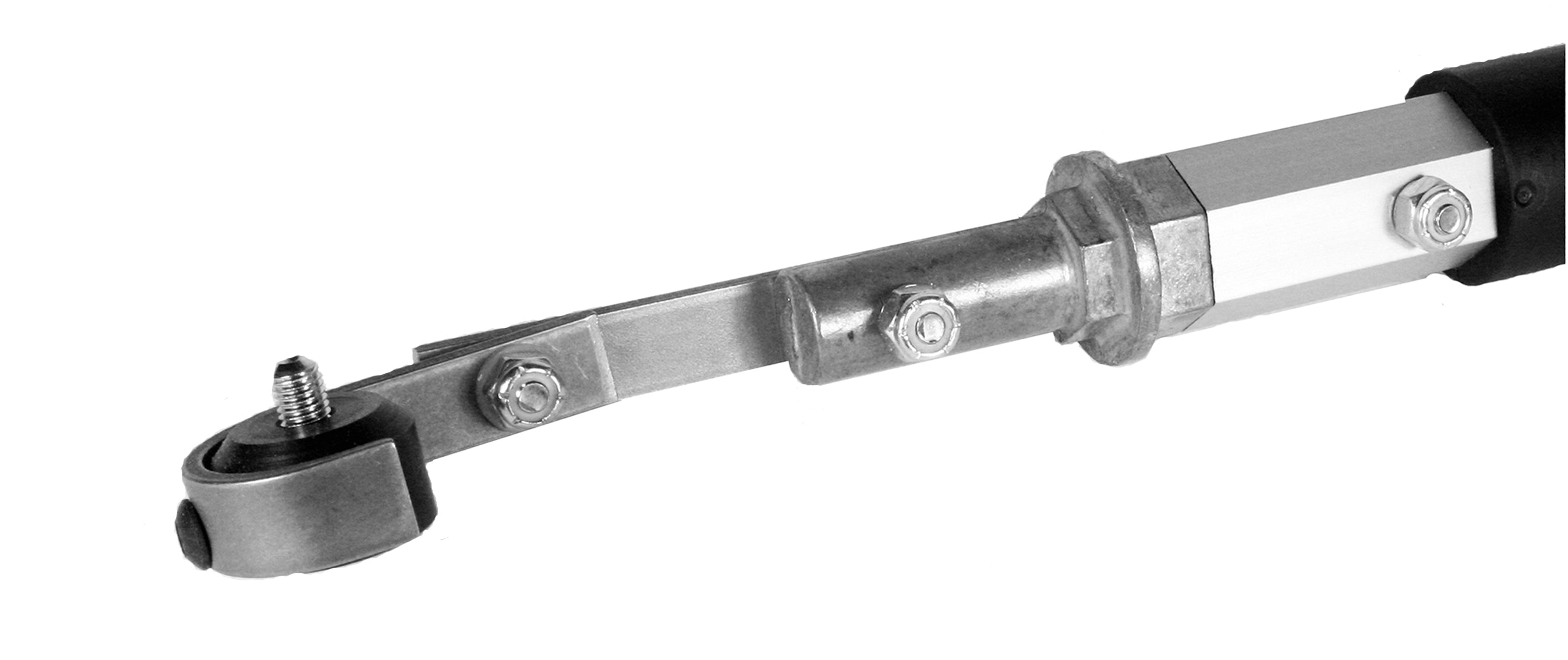

This pole is designed for everyday use and can minimize the bending and stretching associated with normal accelerometer placement plus provide a safer procedure in dangerous situations. The Extension Kit enables the user to customize the Pole to reach those very difficult and dangerous locations. The head joint is manufactured from stainless steel.
Our Accelerometer/Sensor A-607A11 is best suited for our Data Collection Poles.

Data Collection Pole 6 Ft to 12 Ft
