Track-It Data Logger - AC Event

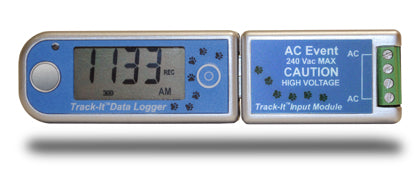

The Track-It AC Event Data Logger is a battery powered stand alone compact data logger records up to 64,000 on/off cycles. Use the Track-It AC Event Logger to monitor cycle patterns of pumps, blowers and other electrical equipment powered by 120 or 240 Volts AC. The unit is easily configured using the included Track-It Software. Simply plug the into an open USB Port on your PC and the software automatically identifies the logger. Configure the unit to start and stop at predetermined time and date or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds to 1 sample every 24 hours. The on board data storage is non-volatile so data will not be lost in the event of a depleted battery. The Track-It AC Event Data Logger can also be used to record ambient temperature along with on/off cycles. This can help diagnose heat verses cycle issues. Information displayed on the LCD Display is also user programmable and can be sequenced by pressing the logger button. The multicolor LED indicator notifies user of alarms or general activity.
